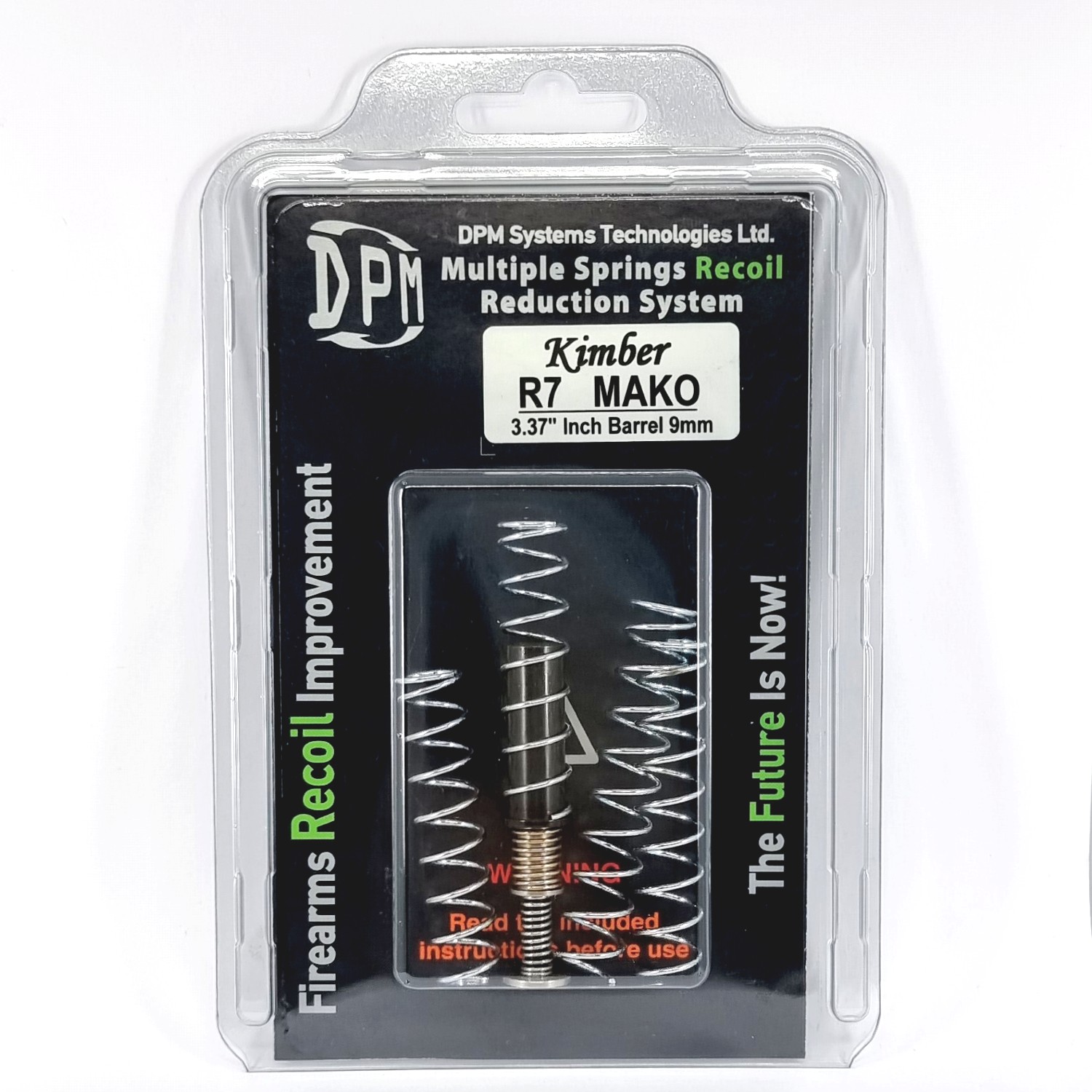

DPM Recoil Springs for KIMBER KIMBER R7 MAKO 3.37" (9mm) TELESCOPIC SYSTEM

The DPM Telescopic Recoil Reduction System for the Kimber R7 Mako 3.37" (9mm) is designed to replace the stock recoil rod without altering the pistol's configuration. This system uses a multi-spring intricate rod (three springs) to manage the recoil effectively, making it ideal for the small internal space of subcompact pistols. The system offers enhanced recoil control, preventing the slide from impacting the frame.

Unique Features:

• B.O.S.S: Black Oxide Stainless Steel coating applied to the visible parts of the recoil system for added durability and protection.
• Multi-spring intricate rod design with three springs.
• Four external springs (2 x 1.15mm and 2 x 1.2mm wire diameter) with different power rates for customized recoil control.
• The longer spring is always the stronger, providing flexibility to fine-tune recoil based on ammunition type.
• Telescopic design optimized for subcompact pistols, ensuring smooth operation.

Power Rates:

Soft Spring 1.15mm:

• Slide on the battery (idle position):
  • Short: 3.9 kg / 8.6 lbs
  • Long: 4.2 kg / 9.25 lbs
• Slide full open position (approx.):
  • Short: 5.5 kg / 12.1 lbs
  • Long: 6 kg / 13.2 lbs

Standard Spring 1.2mm:

• Slide on the battery (idle position):
  • Short: 4 kg / 8.8 lbs
  • Long: 4.4 kg / 9.7 lbs
• Slide full open position (approx.):
  • Short: 6.5 kg / 14.3 lbs
  • Long: 7 kg / 15.4 lbs

Included in the Box:

• DPM Telescopic Recoil Rod
• 4 External Springs (2 x 1.15mm and 2 x 1.2mm)
• Spring Plug (if necessary)
